Turbo Force Pro
Turbo Force Pro - Impasto Brown is backordered and will ship as soon as it is back in stock.
Turbo Force Pro
Description
Description
Teewing Turbo Force Pro takes e-mountain biking to the next level with a powerful DJI Avinox motor that delivers 105 N·m of torque in a compact, high-performance package. Built on a lightweight yet stiff carbon frame, it offers agility and precision for a lively and responsive ride. The bike features wireless shifting with SRAM EC AXS POD technology, and a smooth suspension setup with a RockShox FS Lyric ULTIMATE fork and SUPER DELUXE ULTIMATE rear shock. Whether you're climbing or descending, the Turbo Force Pro delivers unmatched performance on any trail.
Teewing Turbo Force Pro
The Teewing Turbo Force Pro delivers 850W peak power and 105 Nm torque in a 21.5kg full carbon frame. Lightweight, powerful, and smart—built to conquer any trail with confidence and control.
Enhanced Frame Stiffness
The Teewing Turbo Force Pro carbon frame is crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.
DJI Avinox M1 Motor
The Teewing Turbo Force Pro E-Bike is equipped with the DJI Avinox M1 Drive Unit, a compact motor weighing approximately 2.52 kg. Despite its lightweight design, it delivers a continuous torque of 105 N·m, providing robust power to tackle diverse terrains with ease. The M1 Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customize their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.

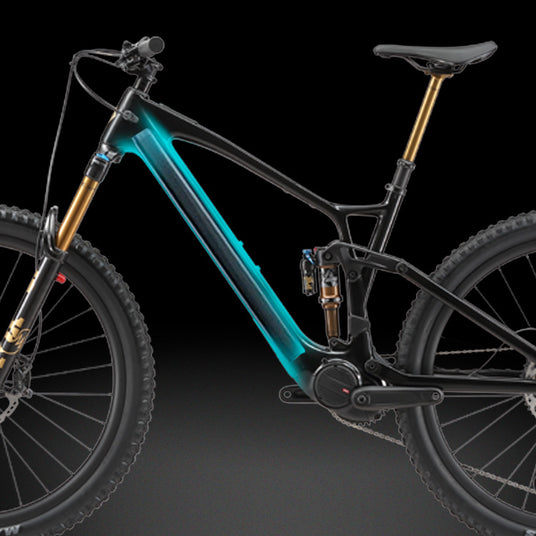

Lightweight, High-Capacity Battery
The Teewing Turbo Force Pro E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.
-
Smart Touchscreen Control
A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.
-
GaN 3x Fast Charging
Utilizing GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.

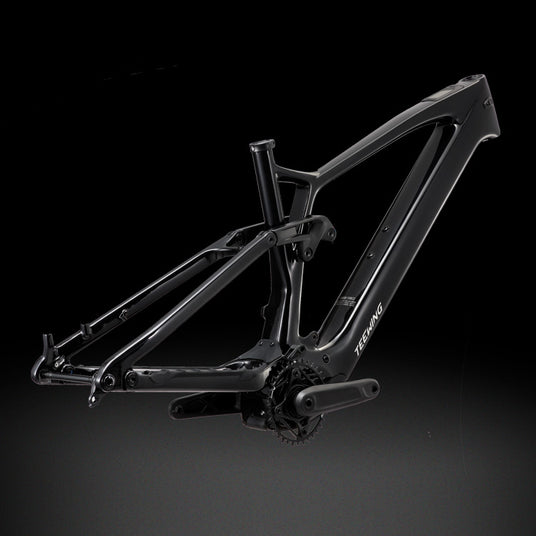

Optimized Frame Geometry
The Teewing Turbo Force Pro e-bike is meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

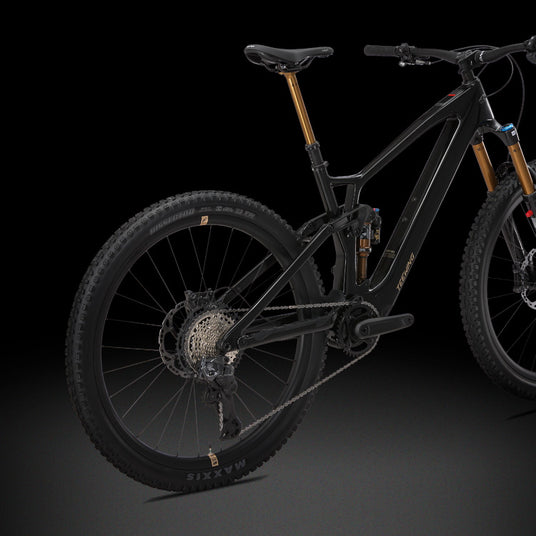

Advanced Four-Bar Linkage
The advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.
Geometry
Specification
Teewing Turbo Force Carbon Frame
29° rear wheels
Cosmic Black; Impasto Brown
150mm rear travel
DJI Avinox M1 Drive Unit: 105 N·m
DJI Avinox Integrated Battery: 800Wh
DJI Avinox Fast Charger: 12A/508W
DJI Avinox Screen: 2-inch OLED Control Display
DJI Avinox Wireless Controllers: Right and left sides
Rockshox SUPER DELUXE ULTIMATE
Trunnion (185mm×55mm), LINEAR AIR CAN

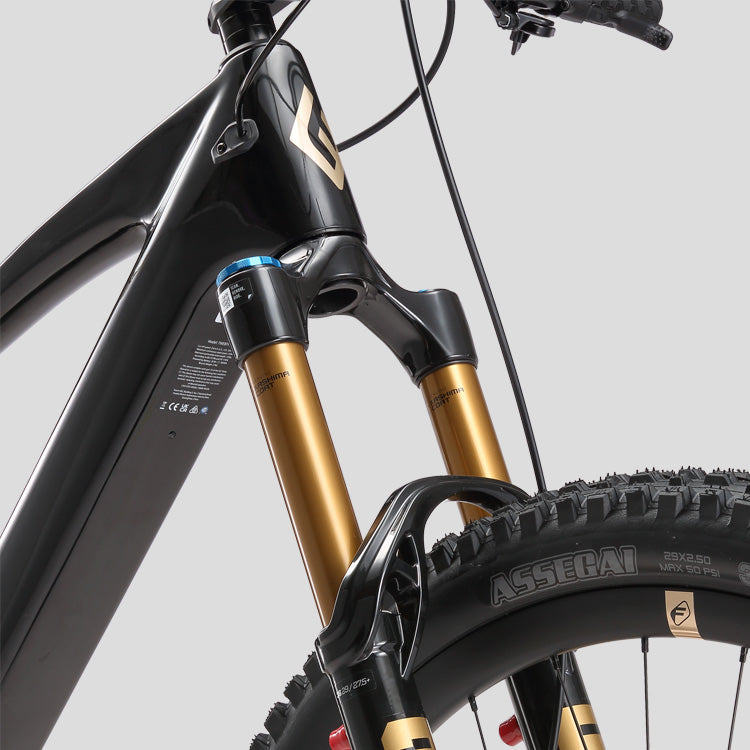

Rockshox FS LYRIK ULTIMATE
29" BOOST, 15X110mm, 160mm travel, 44mm rake
Rear Derailleur: SRAM GX Eagle Rear Derailleur
Shift Levers: SRAM EC AXS POD LEFT/RIGHT BRIDGE W/MMX D1
Chain: SRAM CN GX T-TYPE120 LINK
Chainring: SRAM Eagle Transmission E-MTB Chainring 104 BCD 36T
Cassette: SRAM CS XS 1275 T-TYPE 10-52T
Crankset: DJI Avinox SL Crank 160mm
SRAM DB MAVEN SILVER 4-piston hydraulic disc
SRAM DB ROTOR/BOLTS CENTERLINE 200 ROUNDED
Breo-X7701E
Spokes: SAPIM E-Light J-bend
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Alloy Flat Welding, 29'', 30mm internal width, 32H, tubeless ready
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
Teewing Enduro Carbon Handlebar
5-degree upsweep, 8-degree backsweep
20mm rise, 800mm wide
VELO Enduro Grips
Teewing Enduro 7075 CNC
Clamping diameter: 35mm
Length: 40mm
Selle Royal SRX Plus
RockShox SP REVERB AXS 31.6
L: 175mm
M: 150mm
XL: 200mm
User Manual
Shock Pump
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
21.5kgs / 47.4 lbs
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
