Teewing Bikes  |  SKU: TWEMFOP6BK8

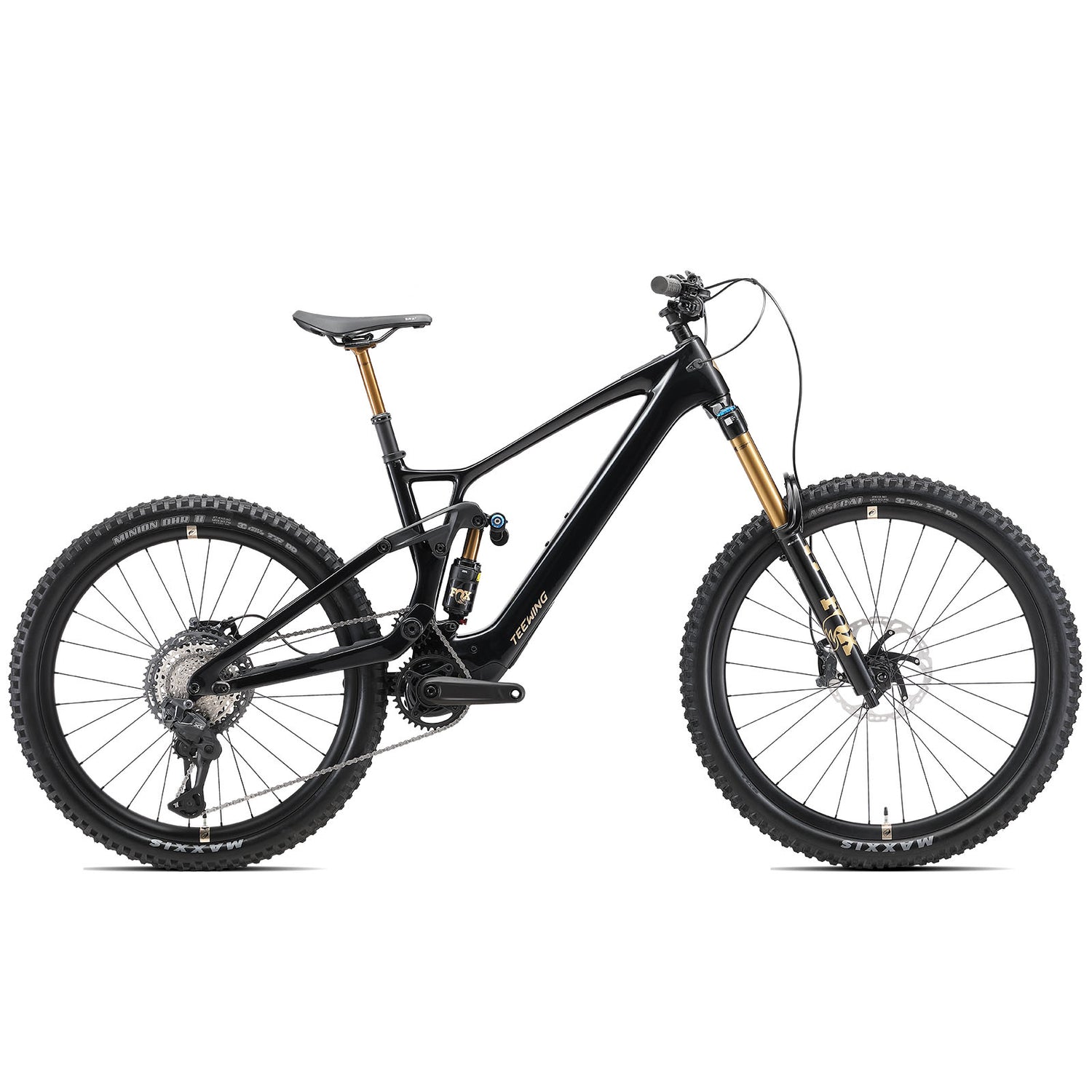

Flux One Pro

€8.999,00
Color: Cosmic Black
Get a Quote

All listed product prices only apply to EU countries and include VAT. Prices may vary by country due to differences in VAT rates and shipping costs.

Description

The Flux One is Teewing’s answer to modern enduro riding — a full-power eMTB designed to go faster, hit harder, and climb stronger.

Built around a high-pivot suspension platform and powered by the new Avinox M2S motor, the Flux One delivers exceptional traction, control, and brutal climbing torque. Whether you're charging steep descents or grinding technical climbs, this is a bike that refuses to hold back.

With 180mm of travel, mullet wheel configuration, and a fully integrated system design, Flux One is engineered for riders who demand maximum performance on every trail.

Teewing_Flux_One_ebikes banner_pc

FULL SEND. FULL POWER.

Teewing Flux One Pro Carbon E-MTB

Race-level suspension meets next-gen M2S drive system.

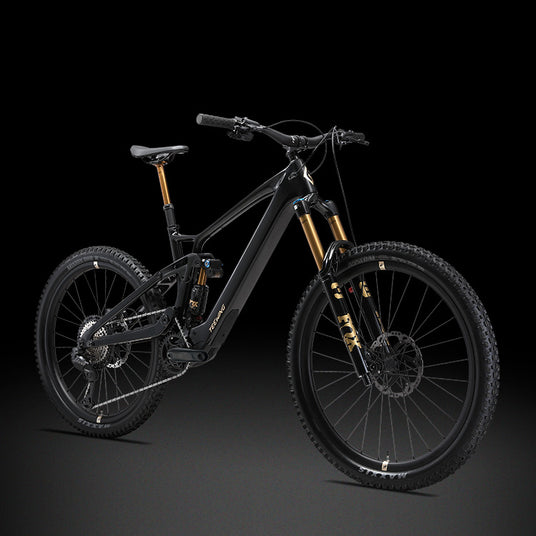

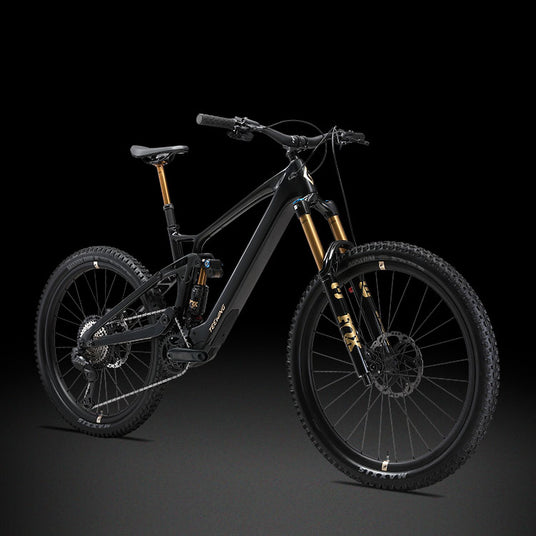

Teewing flux one pro enduro ebikes with 180mm fork

Teewing Flux One Pro

The Flux One Pro is our flagship carbon enduro machine. Equipped with top-tier component from Fox and Shimano, it is designed for riders pushing the limits of speed, control, and full gas enduro riding.

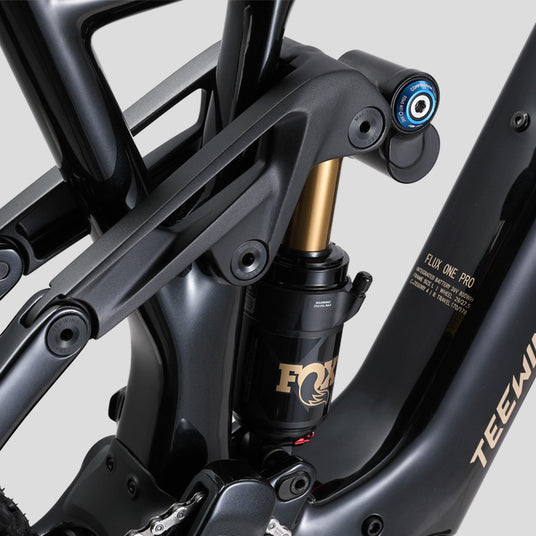

high pivot structure of teewing flux one pro electri enduro ebikes

High Pivot. Maximum Control.

The Flux One frame features a high-pivot suspension layout with an optimized rearward axle path. This design improves bump absorption, maintains momentum through rough terrain, and enhances stability at speed.

A precision-engineered idler system reduces pedal kickback while maintaining drivetrain efficiency — giving you smoother suspension performance when it matters most.

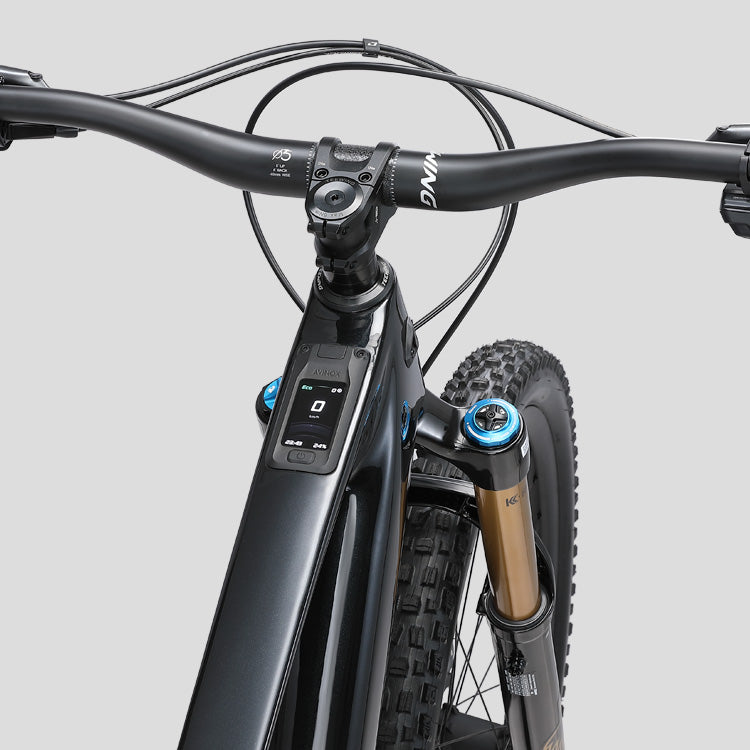

Teewing_Flux_one_Pro_Ebikes_Avinox_touch_Screen
Fox 38 Factory front fork of Teewing flux one pro enduro ebike
Shimano XT BR-M8220 hydraulic disc brakes of teewing flux one

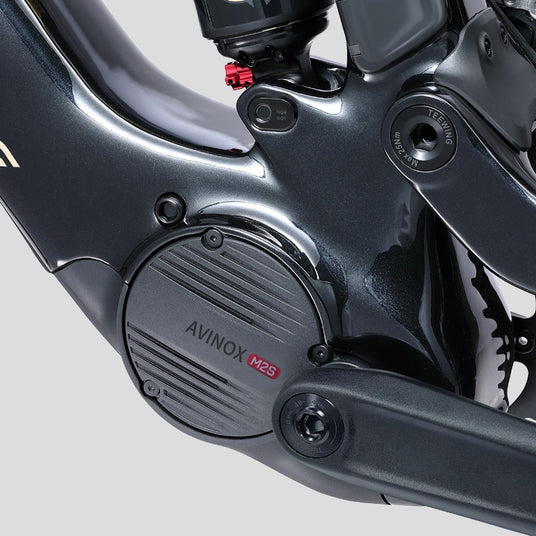

150nm DJI Avinox M2S Motor For teewing flux one pro ebikes

Avinox M2S Motor

At the heart of the Flux One is the next-generation Avinox M2S motor.

  • Up to 130Nm torque (150Nm Boost)
  • Peak power up to 1300W
  • Lightweight design: 2.6kg
  • Reduced pedal resistance
  • Significantly quieter operation

The M2S delivers explosive acceleration and sustained power for steep climbs, while maintaining a natural riding feel.

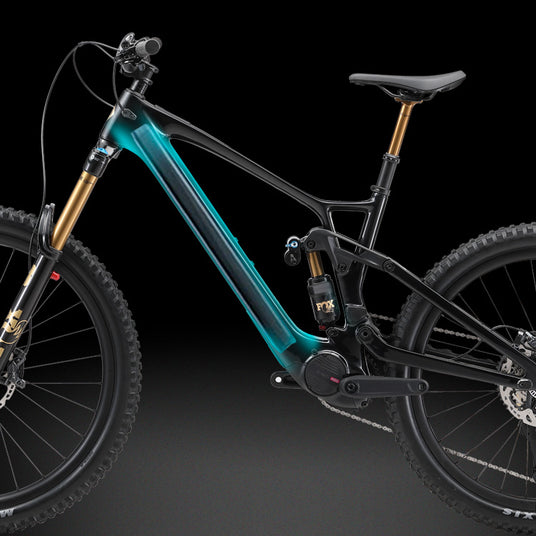

Avinox 800Wh inner tube battery of teewing flux ebike

Lightweight, High-Capacity Battery

The high-capacity 800Wh battery is fully integrated into the frame, providing long-range performance without compromising frame stiffness or handling.

Designed for real enduro riding — longer climbs, more laps, less worry.

  • Smart_APP_and_Touchable_Screen_of_Teewing_Turbo_Force_E-bike

    Smart Touchscreen Control

    A fully integrated Avinox touch display is seamlessly built into the top tube.

    • Real-time ride data
    • Clean cockpit design
    • Easy access while riding

    No clutter. Just essential information where you need it.

  • 12Ah_Fast_Charger_of_Teewing_Turbo_Force_Electric_bikes

    Fast. Magnetic. Sealed.

    The updated magnetic charging port offers improved weather sealing and ease of use.

    Fast charging capability minimizes downtime — so you spend more time riding, less time waiting.

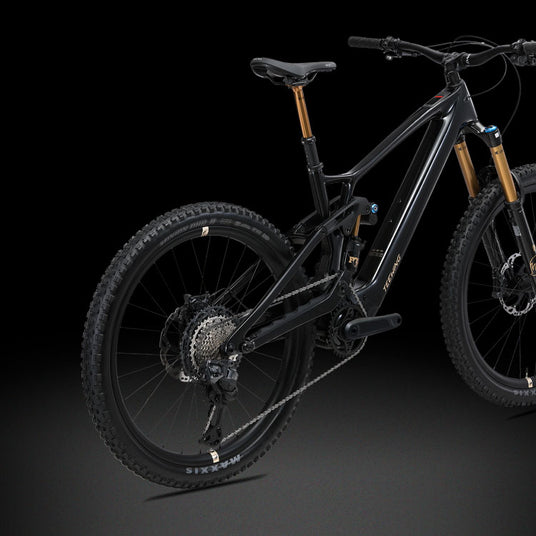

Mullet wheels of teewing_flux_one_pro_enduro_ebike

Mullet Setup

The mullet wheel configuration combines:

  • 29” front wheel for rollover and stability
  • 27.5” rear wheel for agility and control
  • And a flip chip lets you switch to a full 29in set up

Perfect balance between speed and maneuverability.

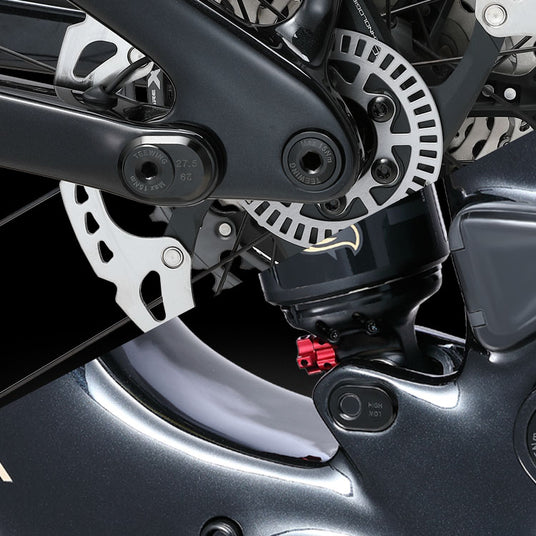

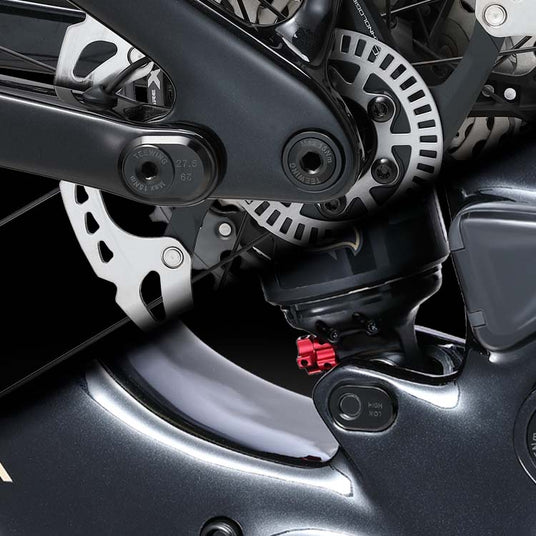

flip chip of teewing flue one pro enduro ebikes

Adjustable Geometry

The flip chip system allows riders to fine-tune geometry:

  • High setting for clearance and technical terrain
  • Low setting for aggressive descending and stability

Adapt your bike to your riding style.

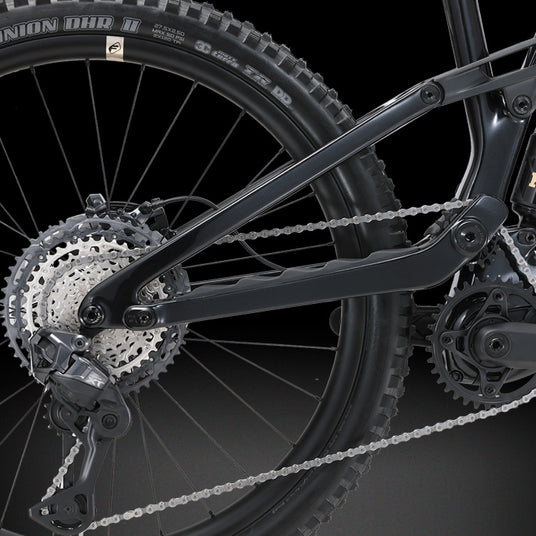

High_pivot_and_Idler_wheel_of_teewing_flux_one_pro_e_bicycles

Idler-Optimized Drivetrain

The idler pulley system is designed to:

  • Reduce pedal kickback
  • Improve suspension independence
  • Maintain drivetrain efficiency

Resulting in smoother, more controlled riding on rough terrain.

riding teewing flux one ebike jump through mauntain trails
riding teewing enduro mountain ebike through a forest
teewing flux one Mountain ebike on a rocky outcrop with a waterfall in the background
riding Teewing flux one ebike on a trail - video cover

Geometry - 29" Rear Wheel

Geometry chart of teewing flux one ebikes with 29inch rear wheel
M(mm)
L(mm)
XL(mm)
AReach
H:455 L:452
H:480 L:477
H:505 L:502
BStack
H:633.6 L:635.6
H:642.5 L:644.5
H:655 L:657
CSeat-Tube Length
420
445
470
DHead Tube Length
105
115
130
ESeat Tube Angle
H:78° L:77.7°
H:78° L:77.7°
H:78° L:77.7°
FActual Seat Tube Angle
H:74° L:73.7°
H:74° L:73.7°
H:74° L:73.7°
GHeat Tube Angle
H:63.5° L:63.2°
H:63.5° L:63.2°
H:63.5° L:63.2°
HChain Stay Length
H:450 L:452
H:450 L:452
H:450 L:452
IFork Length
596
596
596
JFork Rake/Offset
44
44
44
KFront Center
808
837.4
869
L Effective Top Tube Length
589.7
616.5
644.3
MBB Drop
H:25 L:29
H:25 L:29
H:25 L:29
NB-B Height
H:345 L:340
H:345 L:340
H:345 L:340
OWheelbase
1242
1281.4
1317.6

Geometry - 27.5" Rear Wheel

Geometry chart of teewing flux one ebikes with 27.5inch rear wheel
M(mm)
L(mm)
XL(mm)
AReach
H:458 L:455
H:483 L:480
H:508 L:505
BStack
H:631.1 L:633.6
H:640 L:642.5
H:652.5 L:655
CSeat-Tube Length
420
445
470
DHead Tube Length
105
115
130
ESeat Tube Angle
H:78.3° L:78°
H:78.3° L:78°
H:78.3° L:78°
FActual Seat Tube Angle
H:74.3° L:74°
H:74.3° L:74°
H:74.3° L:74°
GHeat Tube Angle
H:63.8° L:63.5°
H:63.8° L:63.5°
H:63.8° L:63.5°
HChain Stay Length
H:434 L:436
H:434 L:436
H:434 L:436
IFork Length
596
596
596
JFork Rake/Offset
44
44
44
KFront Center
808
837.4
869
L Effective Top Tube Length
589.7
616.5
644.3
MBB Drop
H:6 L:10
H:6 L:10
H:6 L:10
NB-B Height
H:350 L:345
H:350 L:345
H:350 L:345
OWheelbase
1232
1271.4
1307.6

Specification

Teewing Flux One Pro
Frame

Teewing Flux One Carbon Frame

Front 29", Rear 27.5" wheels

Cosmic Black; Cosmic Blue

170/178mm rear travel

E-bike System

Avinox M2S Motor, Max 130 N·m (150N·m Boost)

Avinox Integrated Battery: 800Wh

Avinox Fast Charger: 12A/508W

Avinox Screen: 2-inch OLED Control Display

Avinox Wireless Controllers: Right and left sides

Rear Shock

FOX Float X2 Factory

205x65mm · Trunnion Mount · EVOL Air Spring · 2-Position Lever · High/Low-Speed Compression & Rebound Adjustment

Fork

FOX 38 Float Factory (GRIP X2)

29”· 180mm Travel · GRIP X2 Damper · High/Low-Speed Compression & Rebound Adjustment · 44mm Offset · Boost 15x110mm · Tapered 1.5” Steerer

Transmission

Rear Derailleur:Shimano XT RD-M8250 SGS DI2 12-Speed

Shift Levers: Shimano XT SW-M6250 DI2 12-Speed

Chain: Shimano SLX CN-M7100, 124LINKS

Chainring: Shimano SM-CRE70-12-B, 36T W/O CG, FOR CHAIN LINE 55MM, BLACK, BULK

Cassette: Shimano XT M8200, 10-51T

Crankset: Teewing SL Crank 155mm

Brakes

Shimano XT BR-M8220, hydraulic disc 4-Piston

Shimano-RT86-203mm

Wheels

Formula -M7 pro Hybrid

Spokes: SAPIM E-Light straight pull spokes

Rear hub: aluminum alloy, sealed bearing × 4, 148 × 12mm thru axle, 28 holes, straight pull, 6 studs, 78T

Rim: Carbon Fiber, Front 29'',Rear 27.5”, 30mm inner width, 28 holes, vacuum compatible

Front hub: aluminum alloy, sealed bearing × 2, 15 × 110mm thru axle, 28 holes, straight pull, 6 nails

Tires

Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down

Rear: Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown

Handlebar

Teewing Enduro Carbon Handlebar

5-degree upsweep, 8-degree backsweep

40mm rise, 800mm wide

Grips

VELO Enduro Grips

Stem

Teewing Enduro Alloy 7075 CNC

Clamping diameter: 35mm

Length: 40mm

Saddle

Selle Royal SRX Plus

Seatpost

Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment

L: 180mm

M: 150mm

XL: 210mm

Accessories

User Manual

Shock Pump

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Weight*

22.9kgs / 50.4 lbs

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
