Turbo Force XT
Turbo Force XT - Cosmic Black is backordered and will ship as soon as it is back in stock.
Turbo Force XT
Description
Description

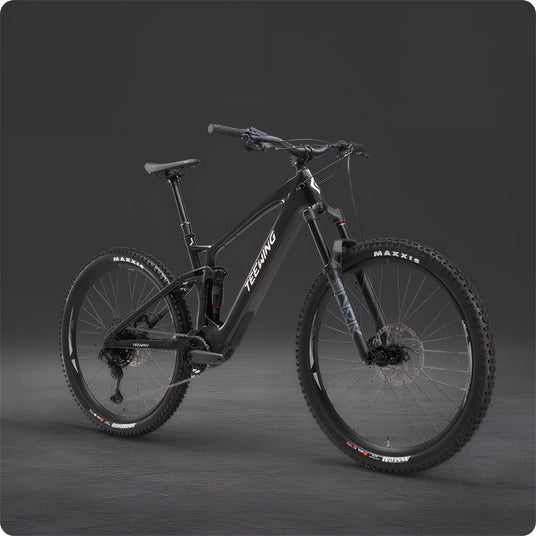

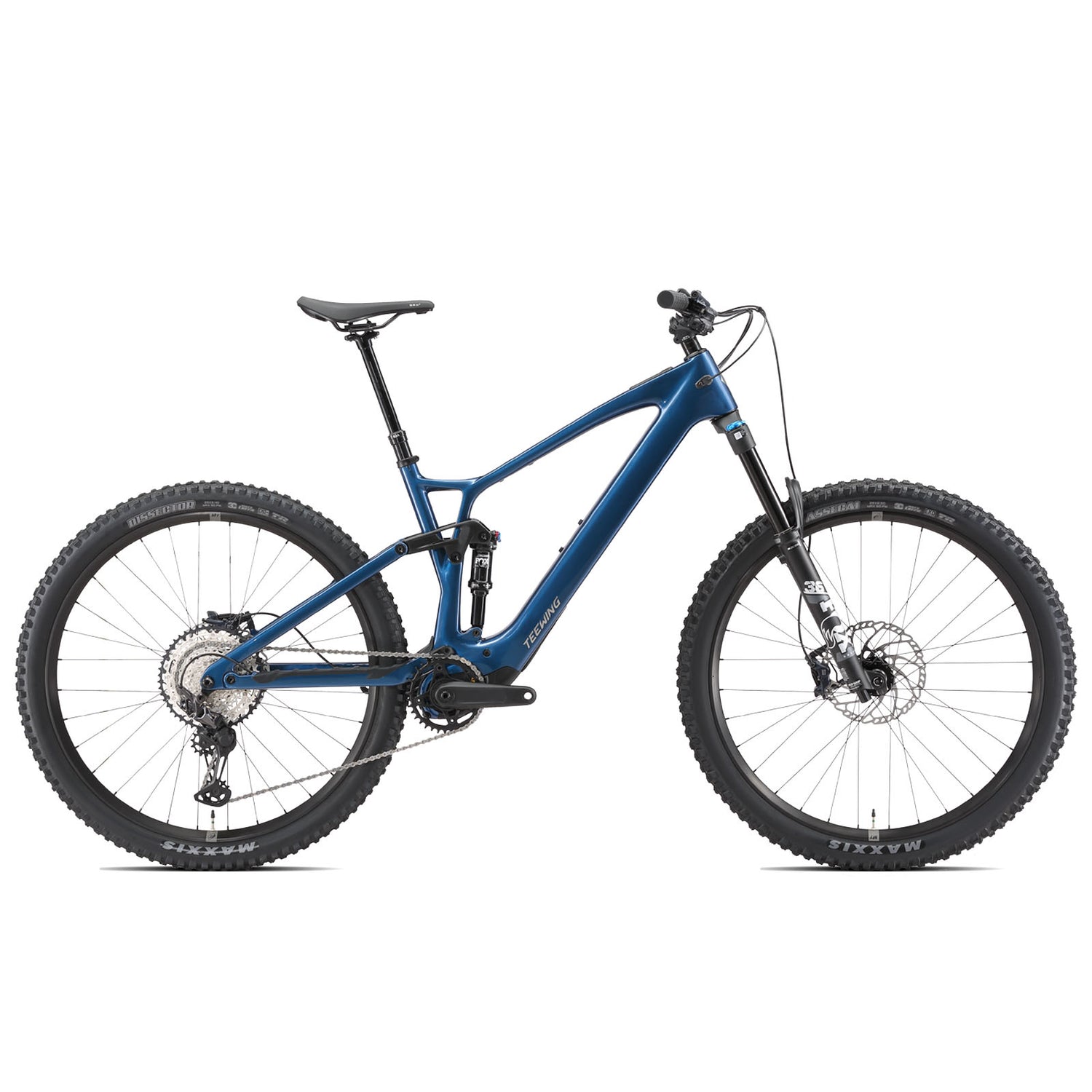

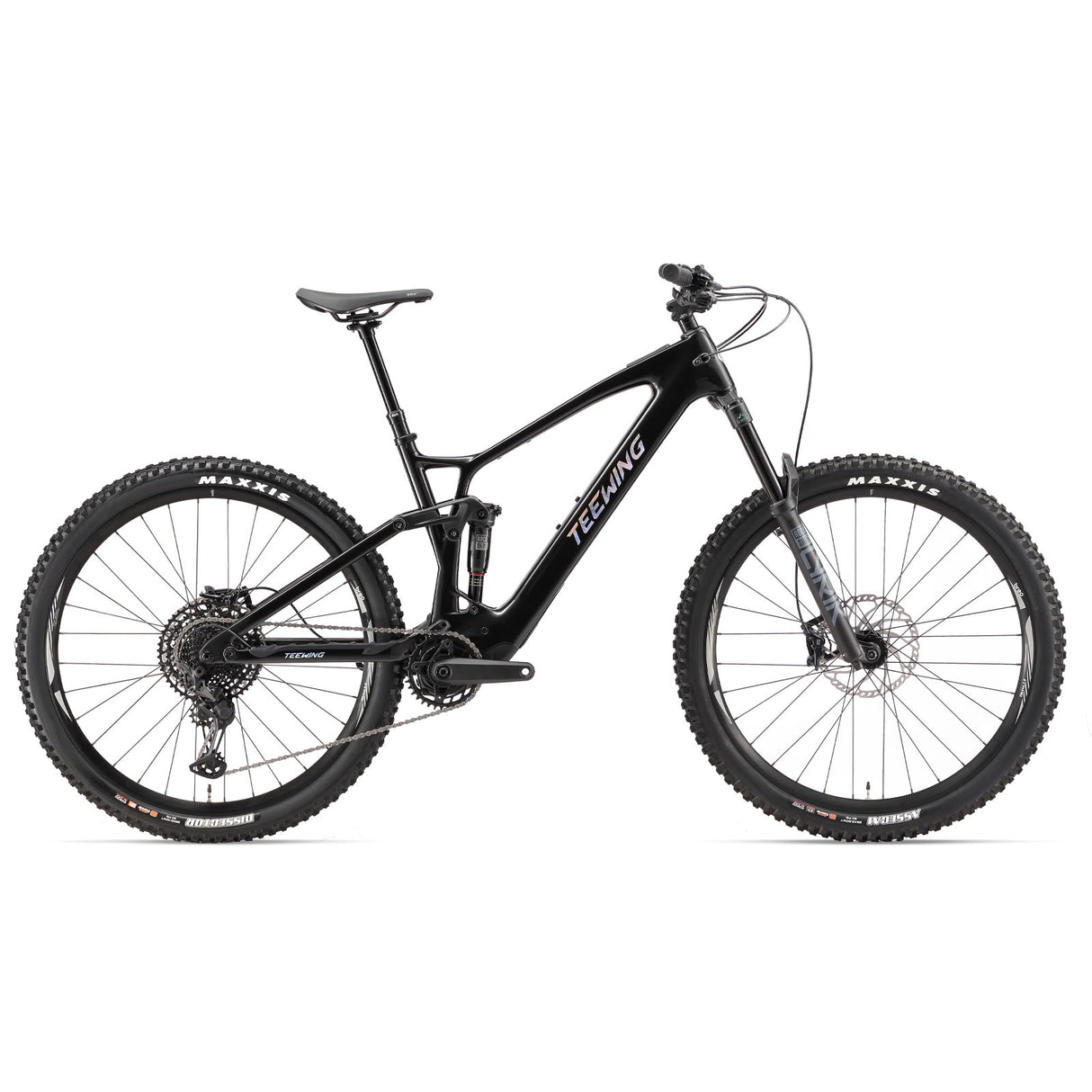

Teewing Turbo Force XT takes a bold step forward in e-mountain biking with the DJI Avinox motor, delivering 105 N·m of torque in a compact, powerful design. Built on a lightweight carbon frame, it’s stiff and agile, offering a responsive ride on any trail. To enhance the experience, it’s equipped with Shimano XT M8100 12-speed shifting for precise gear changes, and a smooth suspension setup with a RockShox FS Lyric BASE fork and DELUXE SELECT+ rear shock. With an high-capacity 800Wh battery, the Turbo Force XT keeps you powered up and ready for adventure.
Teewing Turbo Force XT

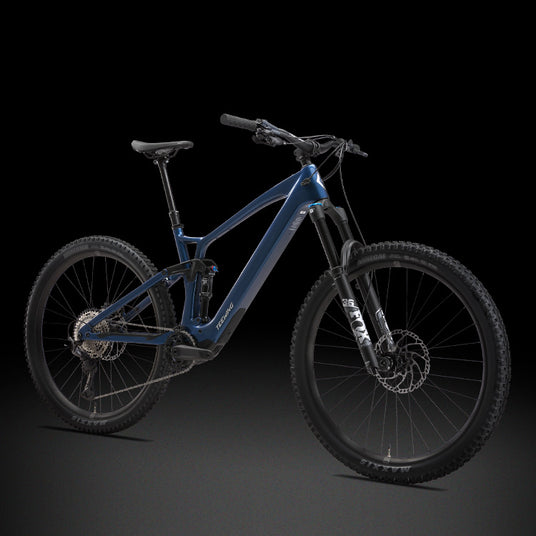

The Teewing Turbo Force XT delivers 850W peak power and 105 Nm torque in a 22.5kg full carbon frame. Lightweight, powerful, and smart—built to conquer any trail with confidence and control.
Enhanced Frame Stiffness
The Teewing Turbo Force XT carbon frame is crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

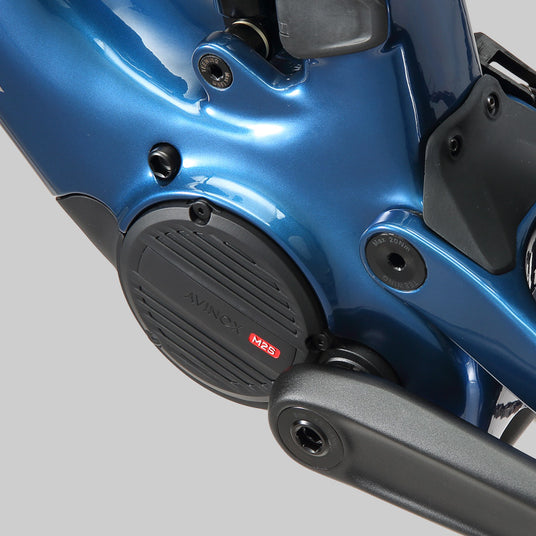

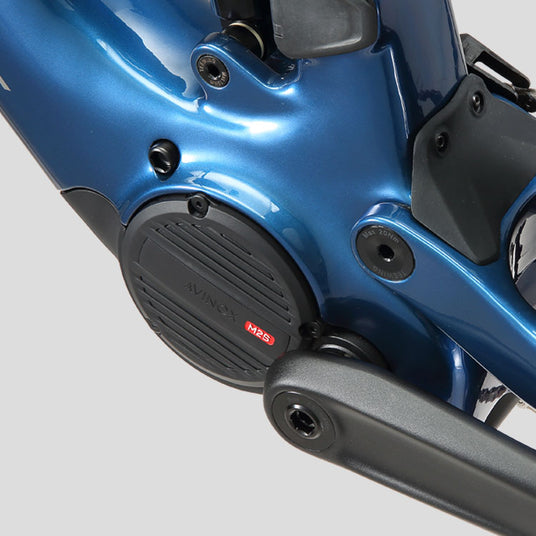

DJI Avinox M1 Motor
The Teewing Turbo Force XT E-Bike is equipped with the DJI Avinox M1 Drive Unit, a compact motor weighing approximately 2.52 kg. Despite its lightweight design, it delivers a continuous torque of 105 N·m, providing robust power to tackle diverse terrains with ease. The M1 Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customize their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.
Lightweight, High-Capacity Battery
The Teewing Turbo Force XT E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.
-
Smart Touchscreen Control
A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.
-
4A Compact Charger
Utilizing a steady 4A, 168W output, this compact charger provides stable and reliable charging that helps extend battery life and ensures safety. Its streamlined design makes it easy to carry in your frame bag for quick on-the-go recharges.
Optimized Frame Geometry
The Teewing Turbo Force XT e-bike is meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

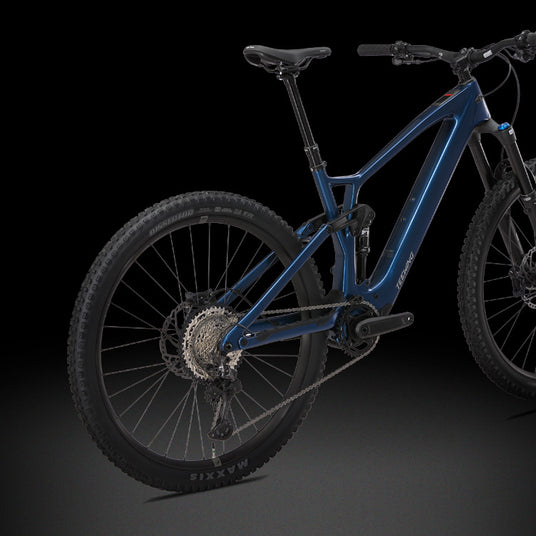

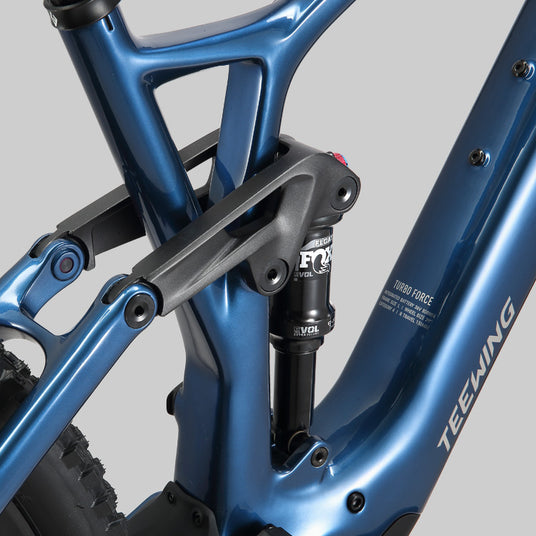

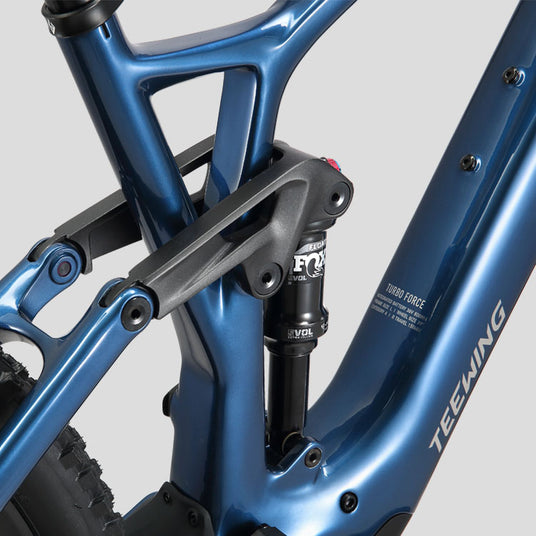

Advanced Four-Bar Linkage
The advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.
Geometry
Specification
Teewing Turbo Force Carbon Frame
29° rear wheels

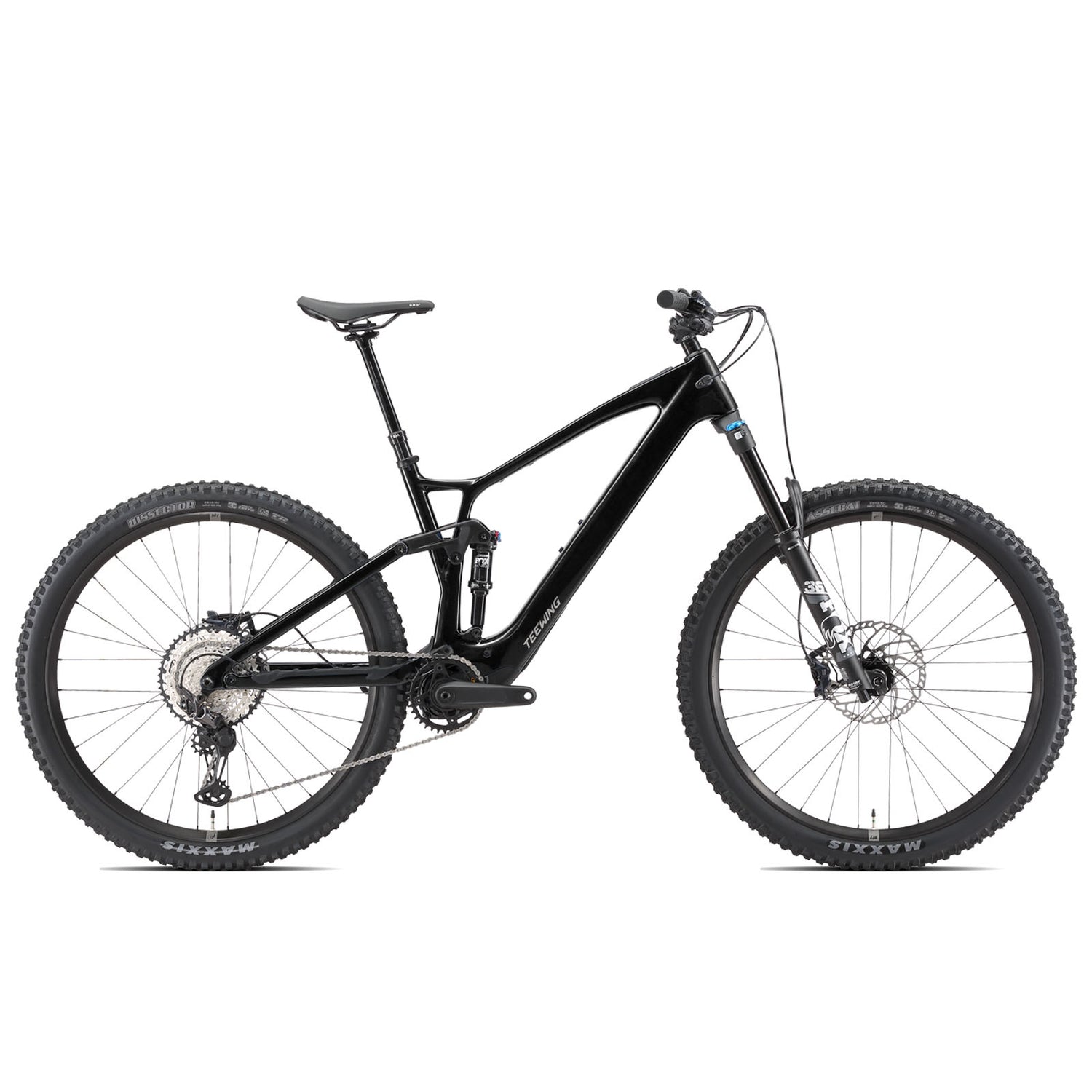

Cosmic Black
150mm rear travel
DJI Avinox M1 Drive Unit: 105 N·m
DJI Avinox Integrated Battery: 800Wh
DJI Avinox Fast Charger: 4A/168W
DJI Avinox Screen: 2-inch OLED Control Display
DJI Avinox Wireless Controllers: Right and left sides
Rockshox DELUXE SELECT+
Trunnion (185mm×55mm), LINEAR AIR CAN

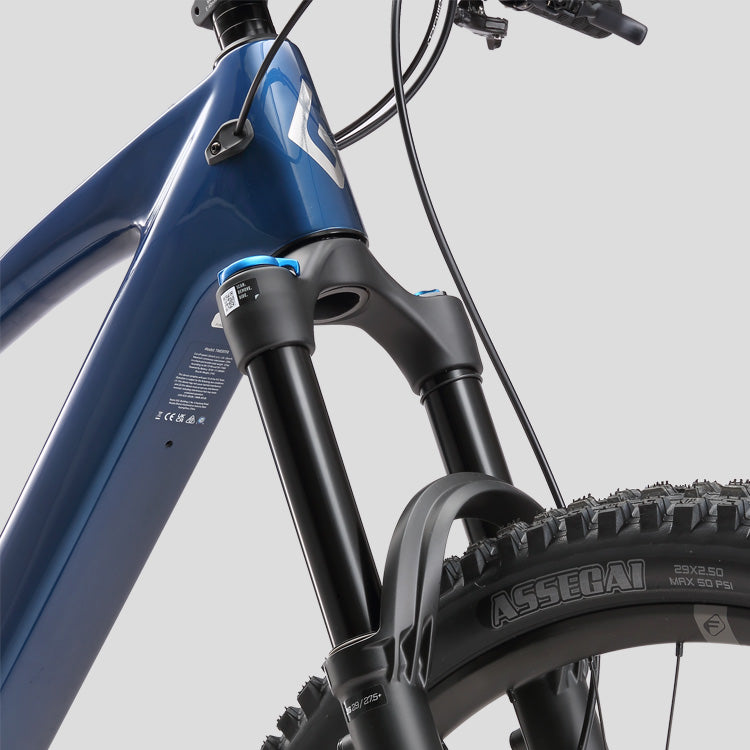

Rockshox FS LYRIK BASE
29" BOOST, 15X110mm, 160mm travel, 44mm rake
Rear Derailleur: Shimano XT M8100, long cage
Shift Levers: Shimano XT M8100, 12 speed
Chain: Shimano SLX CN-M7100, 120LINKS
Chainring: Prowheel FD04 BCD=104,11/128*36T,BED
Cassette: Shimano SLX M7100, 10-51, 12 speed
Crankset: DJI Avinox SL Crank 160mm
Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper
Shimano RT66, 6-bolt, 203mm
Breo-X1701E
Spokes: SAPIM E-Light J-bend
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Alloy, 29'', 30mm internal width, 32H, tubeless ready
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
Teewing Enduro AL7075-T6 Handlebar
8-degree upsweep, 8-degree backsweep
35mm rise, 800mm wide
VELO Enduro Grips
Teewing Enduro AL6061-T6
Clamping diameter: 35mm
Length: 40mm
Selle Royal SRX Plus
EXA 31.6
L: 170mm
M: 150mm
XL: 190mm
User Manual
Shock Pump
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
22.5kgs / 49.6 lbs
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
